- Cherlapalli, Hyderabad, Telangana
- View Mobile Number
1.05 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Servoshield |
| Condition | New |
| Automation Grade | Automatic |
| Click to view more | |
Product Details
Application
Stabilization
Type
Power Stabilizer
Phase
Three Phase
Country of Origin
India
Warrenty
2years
Surge Protection
Yes
Capacity
100 kVA
Output Voltage
415 V
Input Voltage Range
300.460V AC 3-ph 50hz/60hz ph-ph, 340-480V AC, 360-460 V AC
Insulation
Class
Speed of Correction
60V/sec
Response Time
10 Milliseconds
System Connections
Delta/star or Star/delra or Star/star
Ratios
1:1 and 2:1
Regulation
Better than 3.5%
Power Factor
0.75 Lead to 0.75 Lag
Di-electric Strength
3 KV for 60 sec
Insulation Resistance
Better than 1000 Mega Ohms
Coupling Capacitance
0.01 PF for 100 Db
Leakage Current
Less than 20 Micro Amps
Construction Standards
As per IS 2026 Part I & II
Type of Execution
Closed Type
Operating Temperature
0 Deg C to 45 Deg C
Type of Cooling
Natural Air/forced Air

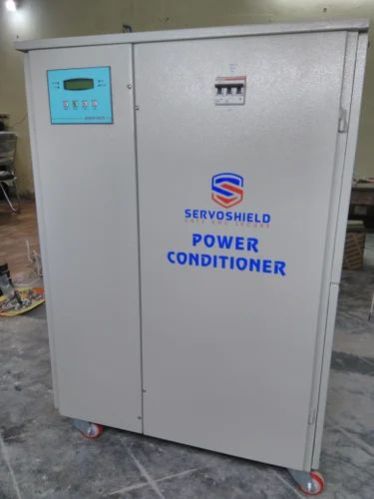

Looking for "Air Cooled 3 Phase Power Conditioner" ?
